  • Support 4 Wiegand card readers of 26 to 64 bits
  • Support 8 GV-Readers and GV-GF Fingerprint Readers through RS-485 connection
  • Built-in 8 digital inputs and 8 relay outputs
  • Suitable for door, parking and elevator access control

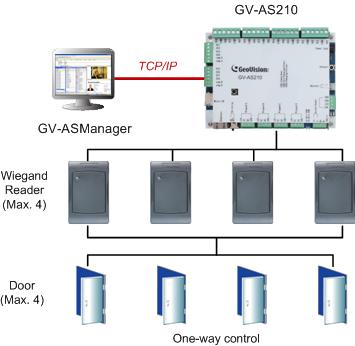

  • One-way control: 4 doors
  • Two-way control: 2 doors by Wiegand, 4 doors by Wiegand and RS-485

SPECIFICATIONS
System Requirements
GV-ASManager Version
Hardware
CPU 32-bit ARM7TDMI
Number of User Cards 40,000 cards
Event Buffer 1,000,000 events and log data
Power AC 100~250 V , 50~60Hz
Reader Port 4 Wiegand interfaces
1 RS-485 interface only for GV-Readers and GV-GF Fingerprint Readers (max. 8 GV-Readers)
Wiegand Interface 26~64 Bit format
12V DC power supply, 200mA
Communication TCP/IP
Input 8 inputs, dry contact, NO
Output 8 relay outputs (30VDC, 3A; 110V AC ~ 250V AC, 3A)
Operating Temperature 0 ~ 65 °C / 32 ~ 149 °F
Operating Humidity 10% ~ 90% RH (non-condensing)
Dimension (W x H x D) 210 x 204 x 46.6 mm / 8.27 x 8.03 x 1.83 in (base plate included)
Weight 700 g / 1.54 lb (base plate included)
Certification CE, FCC, RoHS
Note: Specifications are subject to change without notice.

Optional devices can expand the capabilities and versatilities of your GV-AS Controllers. Consult your sales representative for more information.
GV-Reader 1251 GV-Reader 1251 is a card reader that uses a 125 kHz frequency. It has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-Reader 1352 V2 GV-Reader 1351 V2 is a card reader that uses a 13.56 MHz frequency. It has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-RK1352 GV-RK1352 is a card reader with keypad that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-R1352 GV-R1352 is a card reader that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-DFR1352 GV-DFR1352 is a card reader that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-GF Fingerprint Reader The reader supports three operation modes: Fingerprint Only, Fingerprint + Card and Card Only. In Fingerprint Only mode, the fingerprints are enrolled through GV-ASManager. In Fingerprint + Card mode, the fingerprint templates are stored on the user card. In Card Only mode, the users only need to swipe the card to be granted access. Readers with optical and capacitance sensors are available.
GV-CR420 GV-CR420 is a card reader with a built-in 4MP wide angle IP camera. The card reader recognizes identification cards and transmits live view through network connection.
Push Button Switch The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available.
GV-IB25 / 65 / 85 Infrared Button The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand.
Electric Lock Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike.
GV-AS ID Card & GV-AS ID Tag GV-AS ID Cards and GV-AS ID Tags are ideal for business and residential environment, where access control is important for security reasons. 125 kHz and 13.56 MHz cards and tags are available.

  • GV-AS210
  • Power Adaptor 12V DC / 3A
  • Power Cord
  • Battery Cable
  • Micro SD Card 2 GB
  • GV-ASManager Software DVD
