• 300万像素超低照度逐行扫描CMOS
  • 双码流H.264和MJPEG
  • 2048×1536时每秒20帧
  • 智能红外
  • 日/ 夜功能 移动式红外滤光片
  • 机械变焦镜头可进行远程缩放调节
  • 宽动态
  • 除雾
  • 防暴等级(IK10)(金属机身部分)
  • 防护等级(IP67)
  • 一组报警输入和传感器输出
  • 内存卡插槽
  • 移动侦测
  • 遮挡报警
  • 视觉自动化
  • 文字叠加
  • 隐私遮罩
  • IP地址过滤
  • DC 5V/PoE
  • 百万像素镜头
  • 支持的iPhone,iPad,Android和3GPP
  • 网页界面支持31种语言
  • 支持ONVIF协议标准

介绍

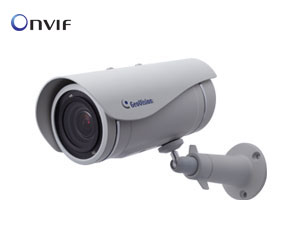

迷你子弹头型摄像机是一款专为户设计的小巧型摄像机。它符合IP67防护等级,且完全防止灰尘和水进入。优势是用户可通过网页远程调整摄像机焦距及支持3倍光学变焦。

遮挡报警
遮挡 焦点变化 场景变化

  • 尺寸
  • 安装
  • 镜头
  • 附件
  • 包装清单

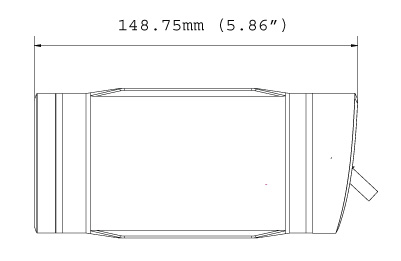

尺寸

点击大图

面板

点击大图

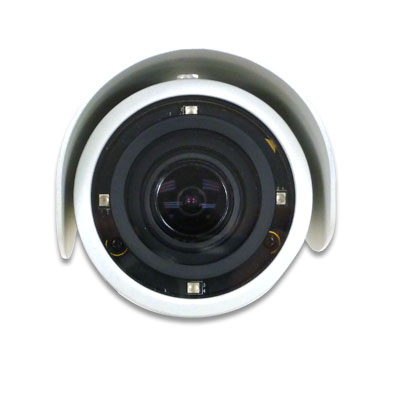

  前视图   后视图
连接器

点击大图



点击大图

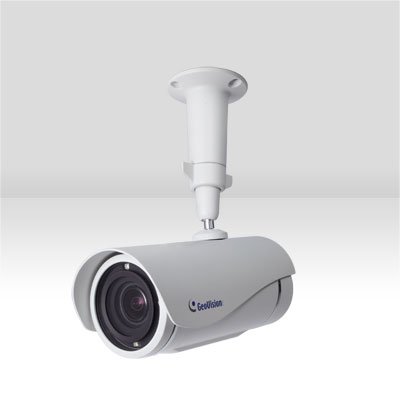

  壁装   吊装
点击

Model No Name Details
GV-PA191 Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Power adapters are available in 4 regions: U.S.A., Australia, U.K and Europe.

  • Ultra Bullet Camera
  • Camera Stand x 1
  • Black Rubber x 1
  • Self Tapping Screw x 3
  • Plastic Screw Anchor x 3
  • Torx Wrench x 1
  • Sun-Shield Cover Kit (1 Sun-Shield Cover, 2 Philips Head Screws, 2 Plastic Screw Spacers and 2 Hexagon Screws included)
  • Cable connector (for waterproof LAN connector only)
  • Silica Gel Bag x 2
  • 2-Pin Terminal Block
  • Data cable
  • GV-IPCAM H.264 Quick Start Guide
  • GV-IPCAM H.264 Software CD
  • GV-NVR Quick Start Guide
  • GV-NVR Software DVD
注:
1. 信号范围和数据吞吐量取决于网络条件和环境因素。
2. 规格参数如有变更,恕不另行通知。
